The Eye, Orbit, and Extraocular Muscles

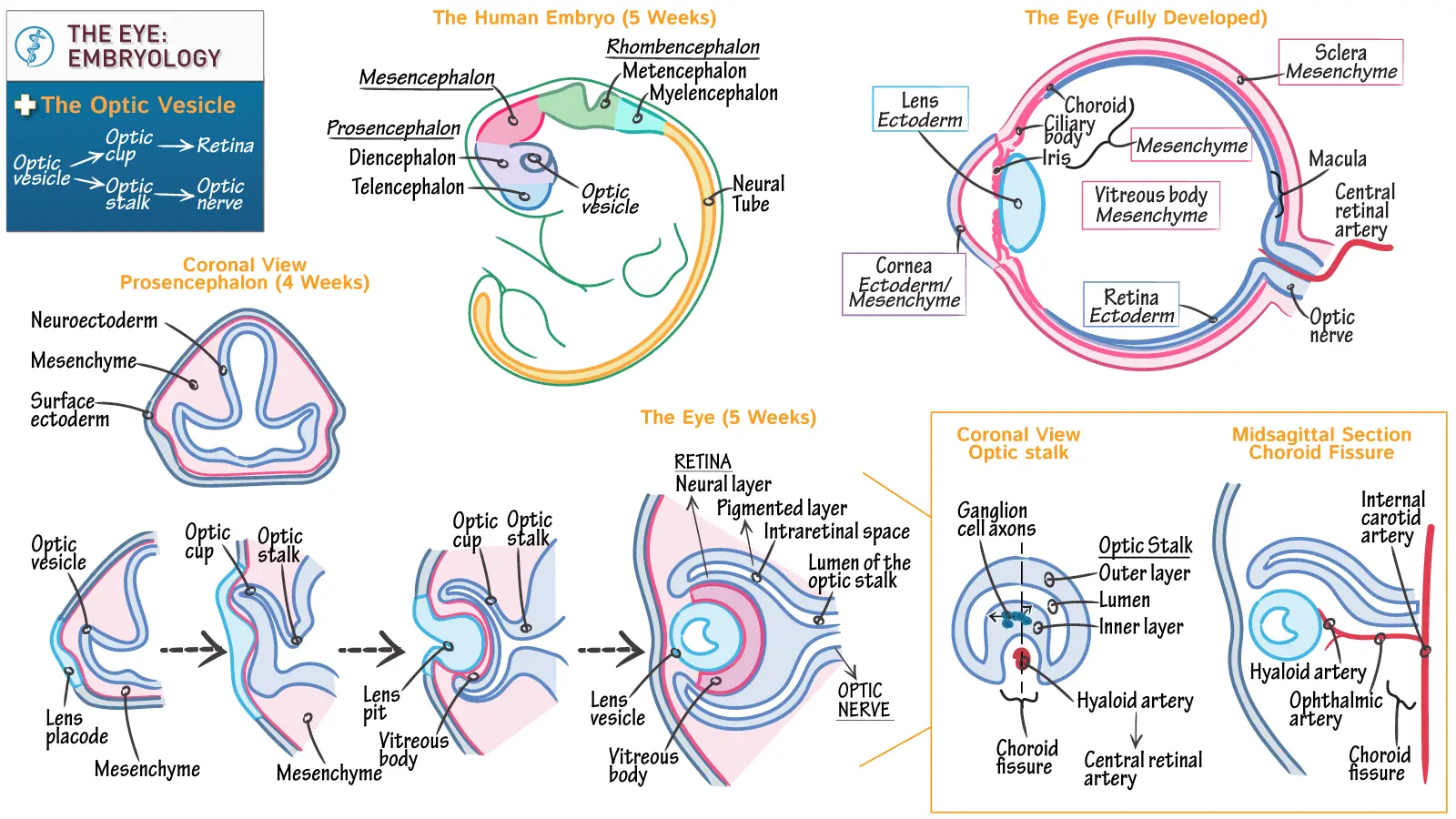

I. Embryology of the Eye

The development of the eye is a complex process involving interactions between neural ectoderm, surface ectoderm, and mesenchyme.

1. Early Development (Optic Vesicles):

• Around day 22 of embryonic development, the eye begins as a pair of shallow optic grooves on the sides of the forebrain.
• With the closure of the neural tube, these grooves evaginate to form optic vesicles, which are outpocketings of the forebrain.
• These optic vesicles then grow laterally to make contact with the surface ectoderm.

2. Lens Formation:

• The optic vesicle induces the overlying surface ectoderm to thicken and invaginate, forming the lens placode.
• The lens placode then invaginates further to form the lens vesicle.
• By the 5th week of intrauterine life, the lens vesicle loses contact with the surface ectoderm and comes to lie within the mouth of the optic cup.
• Germ Layer Origin: The lens is formed from the surface ectoderm.

3. Optic Cup Formation:

• As the lens vesicle forms, the optic vesicle simultaneously invaginates to form a double-walled structure called the optic cup. This invagination also creates the choroid fissure (or optic fissure) along the inferior surface of the optic cup.
• The choroid fissure serves as a pathway for the hyaloid artery (which later becomes the central artery of the retina) to reach the inner chamber of the eye.
• During the 7th week, the lips of the choroid fissure fuse. Failure of this fusion results in a coloboma.
• The anterior opening of the optic cup, formed by the fusion of the choroid fissure lips, becomes the future pupil.

Congenital Eye Abnormalities

These developmental errors can lead to a range of visual impairments.

---

Bony Orbit

The orbit is a pyramidal-shaped bony cavity that houses the eyeball and its associated structures.

1. Bones Forming the Orbit:

• Each bony orbit is formed by seven bones:
  • Maxilla
  • Zygomatic
  • Frontal
  • Ethmoid
  • Lacrimal
  • Sphenoid
  • Palatine

2. Boundaries of the Orbit:

• Apex: The optic foramen (located in the lesser wing of the sphenoid bone).
• Base (Orbital Rim):
  • Superiorly: Frontal bone.
  • Medially: Frontal process of the maxilla.
  • Inferiorly: Zygomatic process of the maxilla and the zygomatic bone.
  • Laterally: Zygomatic bone, frontal process of the zygomatic bone, and zygomatic process of the frontal bone.
• Roof (Superior Wall):
  • Mainly orbital part of the frontal bone.
  • Posteriorly, the lesser wing of the sphenoid bone.
• Medial Wall:
  • Composed of four bones: frontal process of maxilla, lacrimal bone, orbital plate of the ethmoid bone, and a small part of the sphenoid bone (body).
  • The medial walls of the two orbits are parallel to each other.
• Floor (Inferior Wall):
  • Primarily the orbital surface of the maxilla.
  • Anterolaterally, the zygomatic bone.
  • Posteriorly, the orbital process of the palatine bone.
• Lateral Wall:
  • Anteriorly, the zygomatic bone.
  • Posteriorly, the greater wing of the sphenoid bone.

3. Orbital Fissures and Foramina:

These openings serve as crucial passageways for nerves, vessels, and other structures.

---

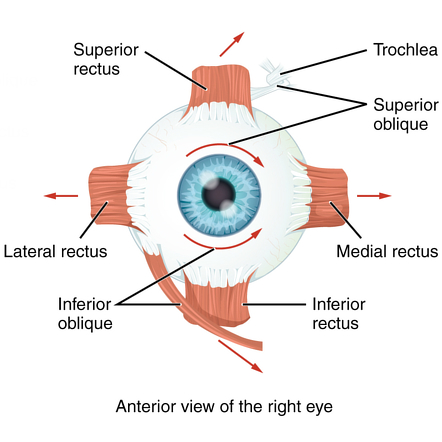

Extrinsic (Extraocular) Muscles of the Eye

These muscles control the movement of the eyeball. They are primarily innervated by CN III, IV, and VI.

1. Origin and Insertion:

• Common Origin: All extrinsic muscles (except the inferior oblique) arise from a common tendinous ring (annulus of Zinn), which surrounds the optic canal and part of the superior orbital fissure.
• Inferior Oblique Origin: The inferior oblique muscle originates from the orbital surface of the maxilla, near the inferior orbital rim.
• Insertions: They insert onto the sclera of the eyeball. The recti muscles insert anterior to the equator of the eyeball, while the oblique muscles insert posterior to the equator.

2. Muscle Actions and Innervation:

Key Considerations for Muscle Actions:

• Recti Muscles: All recti muscles pull the eye towards their origin at the apex of the orbit. Because they originate medially to the sagittal axis of the eyeball, all recti (except the lateral rectus) have an adduction component.
• Oblique Muscles: The oblique muscles insert posterior to the equator of the eyeball.
  • The Superior Oblique depresses and intorts when the eye is adducted, and abducts. It passes through the trochlea (a cartilaginous pulley) before inserting.
  • The Inferior Oblique elevates and extorts when the eye is adducted, and abducts.

3. Laws of Innervation:

• Hering's Law of Equal Innervation: States that synergistic muscles (muscles that work together to produce a gaze direction) receive equal and simultaneous innervation. For example, when looking to the right, the right lateral rectus and left medial rectus receive equal innervation.
• Sherrington's Law of Reciprocal Innervation: States that when an agonist muscle contracts, its antagonist muscle simultaneously relaxes. For example, when the medial rectus contracts to adduct the eye, the lateral rectus relaxes.

---

Clinical Correlates of Extraocular Muscle Palsies

Damage to the cranial nerves innervating the extraocular muscles results in specific patterns of strabismus (misalignment of the eyes) and diplopia (double vision).

1. Oculomotor Nerve (CN III) Palsy:

• Muscles Affected: Superior rectus, inferior rectus, medial rectus, inferior oblique, and levator palpebrae superioris. Also affects parasympathetic fibers to the iris and ciliary body.
• Clinical Signs:
  • Ptosis: Drooping of the upper eyelid due to paralysis of the levator palpebrae superioris.
  • "Down and Out" Eye: The unopposed action of the superior oblique (depresses and intorts) and lateral rectus (abducts) causes the eye to look inferolaterally.
  • Diplopia: Double vision.
  • Mydriasis (Dilated Pupil): Due to paralysis of the constrictor pupillae muscle (parasympathetic fibers).
  • Loss of Accommodation: Due to paralysis of the ciliary muscle (parasympathetic fibers).

2. Trochlear Nerve (CN IV) Palsy:

• Muscle Affected: Superior oblique.
• Clinical Signs:
  • Vertical Diplopia: Especially when looking down and in (e.g., walking down stairs).
  • Extorsion: The superior oblique normally intorts the eye, so its paralysis leads to unopposed extorsion.
  • Head Tilt: Patients often compensate by tilting their head to the opposite shoulder (chin tuck and head turned away from the affected side) to reduce diplopia, as this position helps to intort the affected eye. This is known as the Bielschowsky head tilt test (or more accurately, the head tilt phenomenon, Bielschowsky test is for differentiating paretic vs non-paretic strabismus).

3. Abducens Nerve (CN VI) Palsy:

• Muscle Affected: Lateral rectus.
• Clinical Signs:
  • Medial Deviation (Esotropia): The unopposed action of the medial rectus pulls the eye medially.
  • Inability to Abduct the Eye: The affected eye cannot move laterally past the midline.
  • Horizontal Diplopia: Especially when looking laterally towards the affected side.

---

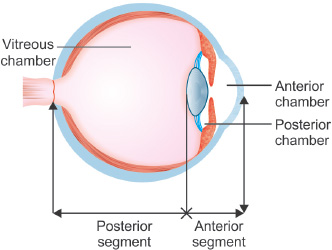

Anterior & Posterior Chambers of the Eye

These fluid-filled spaces are crucial for maintaining intraocular pressure and nourishing the avascular lens and cornea.

1. Aqueous Humor:

• Production: Produced by the ciliary processes (non-pigmented epithelium) of the ciliary body.
• Circulation:
  • From the ciliary processes, it flows into the posterior chamber (space between the iris and the lens).
  • Passes through the pupil into the anterior chamber (space between the cornea and the iris).
  • Drains into the trabecular meshwork, located in the angle between the iris and cornea.
  • From the trabecular meshwork, it flows into the canal of Schlemm (scleral venous sinus).
  • Finally, it drains into the episcleral veins.

2. Clinical Significance - Glaucoma:

• Definition: A group of eye conditions that damage the optic nerve, often due to abnormally high intraocular pressure (IOP).
• Mechanism: Increased IOP is usually caused by an imbalance between the production and drainage of aqueous humor. Most commonly, it's due to impaired drainage through the trabecular meshwork and/or canal of Schlemm.
• Types:
  • Open-angle glaucoma: The trabecular meshwork appears open, but drainage is still impaired.
  • Angle-closure glaucoma: The iris blocks the trabecular meshwork, preventing drainage.

---

Innervation of the Eye

A summary of the complex nervous supply to the eye and its associated structures.

1. Motor Innervation:

• Oculomotor (CN III): Superior rectus, inferior rectus, medial rectus, inferior oblique, levator palpebrae superioris.
• Trochlear (CN IV): Superior oblique.
• Abducens (CN VI): Lateral rectus.

2. Sensory Innervation:

• Trigeminal Nerve (CN V):
  • Ophthalmic Division (CN V1): Supplies sensation to the cornea, conjunctiva, eyelids, forehead, and nasal bridge.
    • Lacrimal Nerve: Sensory to lacrimal gland, upper eyelid, conjunctiva.
    • Frontal Nerve: Divides into supraorbital and supratrochlear nerves, supplying forehead, scalp, upper eyelid.
    • Nasociliary Nerve: Sensory to eyeball (cornea, iris, ciliary body), conjunctiva, part of nasal mucosa. Branches include long ciliary nerves (sensory to iris and cornea) and anterior/posterior ethmoidal nerves.

3. Autonomic Innervation:

• Parasympathetic Innervation (Pupillary Constriction and Accommodation):
  • Origin: Edinger-Westphal nucleus (midbrain).
  • Pathway: Preganglionic fibers travel with CN III, synapse in the ciliary ganglion. Postganglionic fibers (short ciliary nerves) innervate the sphincter pupillae muscle (causing miosis/pupillary constriction) and the ciliary muscle (causing accommodation/lens thickening for near vision).
  • Reflexes: Important for pupillary light reflex and accommodation reflex.
• Sympathetic Innervation (Pupillary Dilation):
  • Origin: Hypothalamus (first-order neuron) -> Ciliospinal center of Budge (T1-T2 spinal cord) (second-order neuron).
  • Pathway: Preganglionic fibers ascend through the sympathetic chain, synapse in the superior cervical ganglion. Postganglionic fibers form a plexus around the internal carotid artery, then join the long ciliary nerves (via ophthalmic artery and nasociliary nerve) to reach the eye.
  • Action: Innervates the dilator pupillae muscle (causing mydriasis/pupillary dilation) and Müller's muscle (superior tarsal muscle, contributes to upper eyelid elevation).
  • Clinical Significance - Horner's Syndrome: Damage to the sympathetic pathway results in:
    • Ptosis: Mild drooping of the upper eyelid (due to paralysis of Müller's muscle).
    • Miosis: Constricted pupil (due to paralysis of dilator pupillae).
    • Anhidrosis: Absence of sweating on the ipsilateral face.

---

Arterial Supply and Venous Drainage of the Orbit

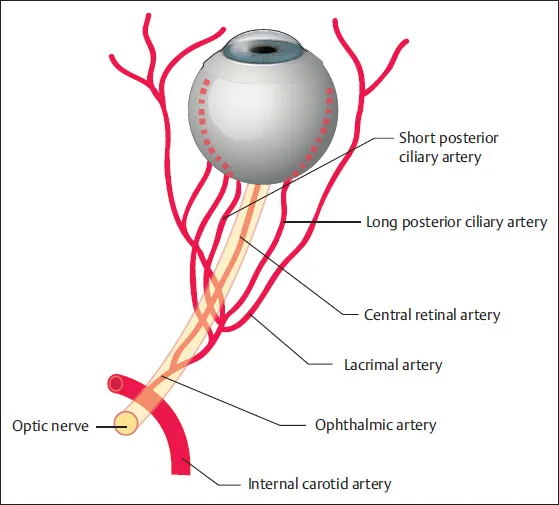

1. Arterial Supply:

• Main Artery: The ophthalmic artery, a branch of the internal carotid artery.
• Branches of Ophthalmic Artery:
  • Central Retinal Artery: Enters the optic nerve, supplies the inner layers of the retina.
  • Lacrimal Artery: Supplies lacrimal gland, eyelids, conjunctiva. Gives off zygomatic branches.
  • Posterior Ciliary Arteries (long and short): Supply choroid, ciliary body, iris.
  • Anterior Ethmoidal Artery and Posterior Ethmoidal Artery: Supply ethmoidal air cells and nasal cavity.
  • Supraorbital Artery and Supratrochlear Artery: Supply forehead and scalp.

2. Venous Drainage:

• Superior Ophthalmic Vein: Drains into the cavernous sinus. Communicates with the facial vein.
• Inferior Ophthalmic Vein: Drains into the cavernous sinus and/or the pterygoid venous plexus. Communicates with the facial vein.
• Clinical Significance: The connections between the ophthalmic veins and facial veins are clinically important because infections of the face (e.g., from a pimple on the nose) can potentially spread to the cavernous sinus, leading to cavernous sinus thrombosis.

---

Other Important Structures

1. Lacrimal Gland

• Function: Produces the watery component of tears.
• Location: Situated in the superolateral part of the orbit, within the lacrimal fossa of the frontal bone.

Innervation of the Lacrimal Gland: The lacrimal gland receives complex innervation involving sensory, secretomotor (parasympathetic), and sympathetic components.

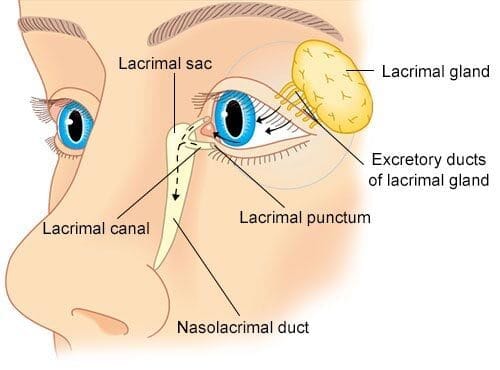

2. Lacrimal Apparatus:

• Lacrimal Gland: Located in the superolateral part of the orbit, produces tears. Innervated by parasympathetic fibers from the facial nerve (CN VII) via the pterygopalatine ganglion.
• Lacrimal Puncta and Canaliculi: Collect tears.
• Lacrimal Sac: Collects tears from canaliculi.
• Nasolacrimal Duct: Drains tears from the lacrimal sac into the inferior meatus of the nasal cavity.

3. Eyelids:

• Orbicularis Oculi Muscle: Closes the eyelids. Innervated by the facial nerve (CN VII).
• Levator Palpebrae Superioris: Elevates the upper eyelid. Innervated by CN III.
• Müller's Muscle (Superior Tarsal Muscle): Smooth muscle that helps elevate the upper eyelid, contributes to widening the palpebral fissure. Innervated by sympathetic fibers.
• Meibomian Glands (Tarsal Glands): Modified sebaceous glands within the tarsal plates, secrete lipid component of tear film to prevent evaporation.

---

The Eye

The eye is a complex sensory organ responsible for vision. It can be broadly divided into three main coats or tunics, and its internal contents.

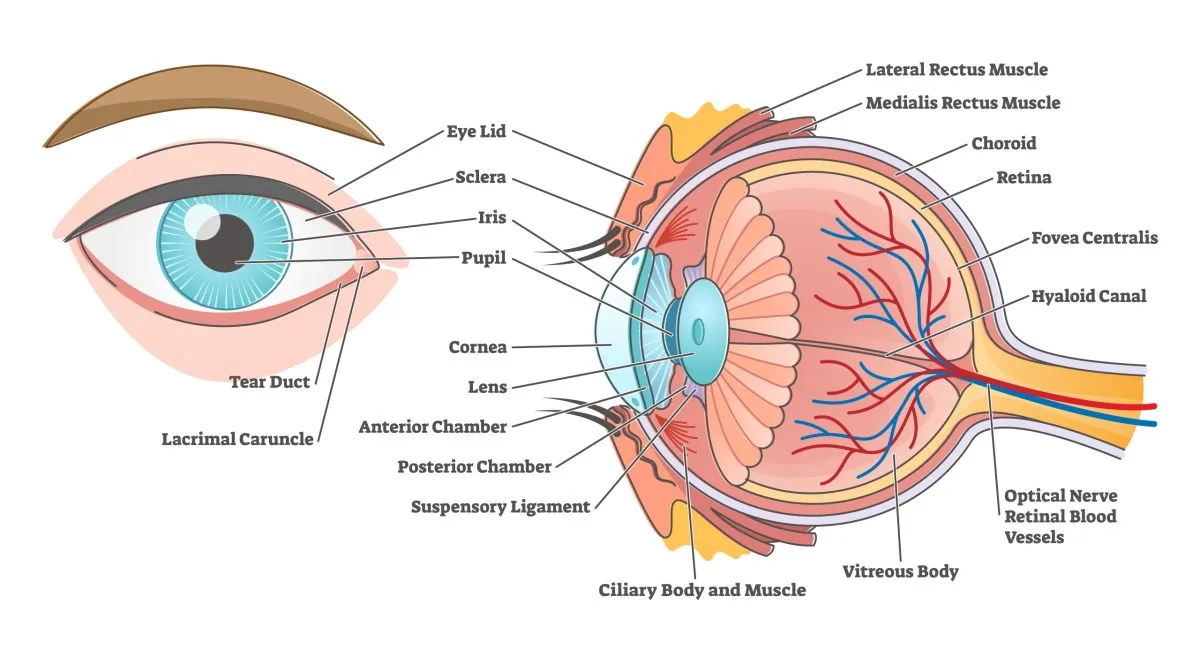

1. Structure of the Eyeball

The eyeball is composed of three concentric layers (tunics) and internal structures.

A. Fibrous Coat (Outer Layer)

This is the outermost protective layer, providing shape and strength to the eyeball.

• Sclera:
  • The posterior, opaque, and tough part of the fibrous coat.
  • Composed of dense connective tissue.
  • Continuous posteriorly with the dura mater of the optic nerve.
  • Lamina Cribrosa: An area of the sclera near the posterior pole that is perforated by the axons of the retinal ganglion cells (forming the optic nerve) and central retinal vessels. This is a weak point susceptible to damage from increased intraocular pressure.
  • Clinical Note: Staphylomas (anterior/posterior) are localized bulges of the sclera, often thinned.
• Cornea:
  • The anterior, transparent, and avascular part of the fibrous coat.
  • Refracts light, contributing significantly to the eye's focusing power.
  • Highly innervated by sensory nerves, making it very sensitive to touch.

B. Vascular Coat (Uvea - Middle Layer)

This layer is rich in blood vessels and pigment.

• Choroid:
  • The highly vascular and pigmented layer located between the retina and the sclera.
  • Consists of an outer pigmented layer and an inner vascular layer.
  • Its primary function is to nourish the outer layers of the retina.
• Ciliary Body:
  • Located anterior to the choroid, extending from the ora serrata to the iris.
  • Comprises:
    • Ciliary Ring: The posterior part.
    • Ciliary Processes: Folds that produce aqueous humor.
    • Ciliary Muscle: Smooth muscle arranged in meridional and radial fibers. Contraction of this muscle plays a crucial role in accommodation (focusing for near vision) by changing the shape of the lens.
• Iris:
  • The pigmented, contractile diaphragm that forms the colored part of the eye.
  • Contains a central opening called the pupil.
  • Regulates the amount of light entering the eye through two intrinsic muscles:
    • Sphincter Pupillae: Circularly arranged fibers that constrict the pupil (miosis) under parasympathetic stimulation.
    • Dilator Pupillae: Radially arranged fibers that dilate the pupil (mydriasis) under sympathetic stimulation.

C. Nervous Coat (Retina - Inner Layer)

This is the light-sensitive layer of the eye.

• Composed of an outer pigmented layer and an inner nervous layer.

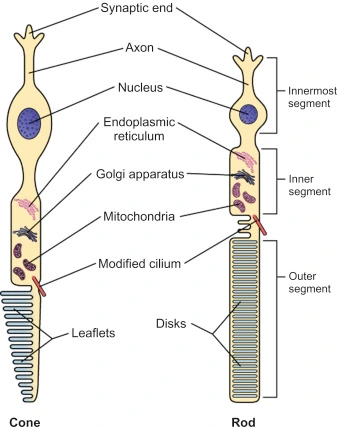

• Posterior ¾: This part is the receptor organ, containing the photoreceptors (rods and cones).
• Anterior Edge: Forms the ora serrata, the jagged anterior margin of the retina, where the nervous layer ends.
• Anterior ¼: This part is non-receptive and covers the inner surface of the ciliary body and iris.
• Macula Lutea: A yellow-pigmented area near the center of the retina, responsible for central and most distinct vision.
• Fovea Centralis: A small, central depression within the macula lutea, containing the highest concentration of cones, thus providing the sharpest visual acuity.
• Optic Disc (Blind Spot): The area where the optic nerve leaves the eyeball and retinal blood vessels enter and exit. It contains no photoreceptors, hence it's a "blind spot" in the visual field.

D. Contents of the Eyeball

The eyeball contains various structures and fluid-filled chambers.

• Aqueous Humor:
  • A clear, watery fluid produced by the ciliary processes.
  • Fills the anterior chamber (between cornea and iris) and posterior chamber (between iris and lens).
  • Maintains intraocular pressure and nourishes the avascular cornea and lens.
• Lens:
  • A transparent, biconvex, elastic structure located posterior to the iris and anterior to the vitreous humor.
  • Focuses light onto the retina by changing its shape (accommodation).
• Vitreous Humor:
  • A clear, gelatinous mass that fills the vitreous chamber (posterior to the lens, anterior to the retina).
  • Maintains the shape of the eyeball and helps hold the retina in place.

E. Intrinsic Muscles of the Eye (Orbit)

These are smooth muscles within the eyeball, involved in controlling pupil size and lens shape.

• Sphincter Pupillae: Constricts the pupil (miosis).
• Dilator Pupillae: Dilates the pupil (mydriasis).
• Ciliary Muscle: Changes the shape of the lens for accommodation.

---

2. Blood Supply of the Eyeball

A. Arterial Supply

The primary arterial supply to the eyeball is from the ophthalmic artery, a branch of the internal carotid artery.

• Central Artery of the Retina:
  • Enters the eyeball at the center of the optic disc, running within the optic nerve.
  • Supplies the inner layers of the retina. Occlusion leads to sudden, painless vision loss.
• Ciliary Arteries:
  • Anterior Ciliary Arteries: Supply the anterior structures of the eye, particularly the corneoscleral junction.
  • Posterior Ciliary Arteries (Short and Long): Supply the choroid, ciliary body, and iris. The short posterior ciliary arteries are numerous and supply the choroid directly. The long posterior ciliary arteries run forward to supply the ciliary body and iris.
• Cilioretinal Artery:
  • Present in a small percentage of individuals.
  • A branch of the posterior ciliary arteries that supplies the macula, potentially preserving central vision in central retinal artery occlusion.

B. Venous Drainage

• Central Retinal Vein: Drains the inner layers of the retina and usually accompanies the central retinal artery into the optic nerve. It typically drains into the cavernous sinus.
• Vorticose Veins (4-7 in number): Drain the choroid and exit the sclera obliquely, usually draining into the superior and inferior ophthalmic veins.
• No Lymph Vessels: The eyeball itself lacks lymphatic vessels.

---

3. Innervation of the Eyeball

The eyeball receives sensory, parasympathetic, and sympathetic innervation.

• Sensory Innervation:
  • Primarily via the long ciliary nerves (branches of the nasociliary nerve, from V1 of the trigeminal nerve). These provide general sensation to the cornea, iris, and ciliary body.
  • Short ciliary nerves also carry some sensory fibers.
• Parasympathetic Innervation (from Oculomotor Nerve - CN III):
  • Pathway: Preganglionic fibers originate in the Edinger-Westphal nucleus, travel with CN III, and synapse in the ciliary ganglion.
  • Postganglionic fibers: Travel via the short ciliary nerves.
  • Action: Innervate the sphincter pupillae muscle (causing pupillary constriction/miosis) and the ciliary muscle (for accommodation/thickening of the lens for near vision).
• Sympathetic Innervation:
  • Pathway: Postganglionic fibers originate in the superior cervical ganglion. They travel along the internal carotid artery plexus.
  • Innervation: These fibers reach the eye via the long ciliary nerves (and sometimes also via the short ciliary nerves after passing through the ciliary ganglion without synapsing).
  • Action: Innervate the dilator pupillae muscle (causing pupillary dilation/mydriasis) and the smooth muscle components of the levator palpebrae superioris (Müller's muscle, contributing to upper eyelid elevation).

---

What is a Rod / a Cone?

Rods and cones are the photoreceptor cells in the retina responsible for converting light into electrical signals.

• Rods:
  • Shape: Long and cylindrical.
  • Function: Responsible for vision in dim light (scotopic vision) and detecting movement. They are highly sensitive but do not detect color.
  • Distribution: More numerous than cones, found primarily in the peripheral retina.

• Cones:
  • Shape: Shorter and conical.
  • Function: Responsible for color vision and high acuity vision in bright light (photopic vision). There are three types of cones, sensitive to different wavelengths (red, green, blue).
  • Distribution: Concentrated in the macula lutea, especially the fovea centralis.

---

Describe the Visual Pathway

The visual pathway describes the route of nerve impulses from the retina to the visual cortex in the brain.

1. Photoreceptors (Rods and Cones): In the retina, light activates rods and cones.
2. Bipolar Neurons: Photoreceptors synapse with bipolar neurons.
3. Ganglion Cells: Bipolar neurons synapse with retinal ganglion cells. The axons of these ganglion cells form the optic nerve.
4. Optic Nerve (CN II): Exits the eyeball at the optic disc.
5. Optic Chiasm: The optic nerves from both eyes converge. Fibers from the nasal (medial) half of each retina decussate (cross over) to the opposite side, while fibers from the temporal (lateral) half remain uncrossed. This arrangement ensures that the left visual field from both eyes projects to the right side of the brain, and vice-versa.
6. Optic Tract: After the chiasm, the fibers form the optic tracts. Each optic tract contains fibers from both eyes corresponding to the contralateral visual field.
7. Lateral Geniculate Nucleus (LGN) of the Thalamus: Most fibers in the optic tracts synapse here. The LGN acts as a relay station, organizing and processing visual information.
8. Optic Radiations (Geniculocalcarine Tract): Fibers from the LGN form the optic radiations, which project to the visual cortex.
9. Primary Visual Areas of the Occipital Lobes: The optic radiations terminate in the primary visual cortex (Brodmann area 17) in the occipital lobes, where visual information is consciously perceived and processed.

---

Explain Accommodation

Accommodation is the process by which the eye changes its optical power to maintain a clear image (focus) of an object as its distance varies. This is primarily achieved by changing the curvature of the lens.

• For Far Vision (Object > 6 meters):
  • Ciliary muscles: Relax.
  • Ciliary body: Moves backward and outward, increasing tension on the suspensory ligaments.
  • Suspensory ligaments: Taut.
  • Lens: Pulled thinner and flatter due to the tension, reducing its refractive power.
  • Pupils: Tend to dilate slightly.
• For Near Vision (Object < 6 meters):
  • Ciliary muscles: Contract.
  • Ciliary body: Moves forward and inward, reducing tension on the suspensory ligaments.
  • Suspensory ligaments: Relax.
  • Lens: Becomes thicker and rounder due to its inherent elasticity, increasing its refractive power.
  • Pupils: Constrict (miosis), which increases the depth of field and improves focus.
  • Convergence: The eyes also turn inward (adduct) to maintain focus on the near object.

---

How does the Light Reflex and the Blink Reflex work?

A. Pupillary Light Reflex

This is an involuntary reflex that controls the diameter of the pupil in response to the intensity of light entering the eye, protecting the retina from overstimulation and optimizing visual acuity. It has both direct and consensual components.

• Afferent Arm:
  • Light stimulates photoreceptors in the retina.
  • Signals travel via the optic nerve (CN II).
  • At the optic chiasm, some fibers cross.
  • Fibers continue through the optic tract to the pretectal nucleus in the midbrain (bypassing the LGN).
  • From the pretectal nucleus, interneurons project to the Edinger-Westphal nucleus (parasympathetic nucleus of CN III) on both sides of the brainstem.
• Efferent Arm:
  • Preganglionic parasympathetic fibers from the Edinger-Westphal nucleus travel with the oculomotor nerve (CN III).
  • They synapse in the ciliary ganglion.
  • Postganglionic parasympathetic fibers (short ciliary nerves) innervate the sphincter pupillae muscle.
  • Result: Contraction of the sphincter pupillae causes pupillary constriction (miosis).
  • Direct Light Reflex: Constriction of the pupil in the eye illuminated by light.
  • Consensual Light Reflex: Simultaneous constriction of the pupil in the other eye, even though it was not directly illuminated.

B. Blink Reflex (Corneal Reflex)

This is an involuntary protective reflex that causes rapid blinking (closure of the eyelids) in response to stimulation of the cornea or a sudden bright light, or a perceived threat.

• Afferent Arm:
  • Stimulation of the cornea (e.g., by touch, foreign body, or sudden bright light).
  • Sensory impulses travel via the nasociliary branch of the ophthalmic division (V1) of the trigeminal nerve (CN V).
  • Signals are relayed to the spinal nucleus of the trigeminal nerve (V) in the brainstem.
• Efferent Arm:
  • From the trigeminal nucleus, interneurons project to the motor nucleus of the facial nerve (CN VII) on both sides.
  • Motor impulses travel via the facial nerve (CN VII).
  • The facial nerve innervates the orbicularis oculi muscle.
  • Result: Contraction of the orbicularis oculi muscle causes rapid closure of the eyelids (blinking).

---

Clinical Correlates
