Superficial Structures of the Head and Neck

A Comprehensive Anatomical Master Guide for Clinical Practice

Module Learning Objectives

By the conclusion of this exhaustive anatomical guide, you will be deeply conversant with:

The complex layering, neurovascular supply, and clinical implications of the Scalp.
The origins, insertions, actions, and innervation of all major Muscles of Facial Expression.
The precise sensory and motor distributions of the Superficial Nerves (Trigeminal, Facial, and Cervical Plexus).
The intricate Superficial Vascular Supply, focusing on the External Carotid branches and the critical venous "Danger Triangle".
The topographical regionalization of the Neck Triangles, their borders, deep contents, and pivotal surface landmarks for clinical procedures.

I. The Scalp: Layers, Blood Supply, and Innervation

The scalp is the soft tissue envelope that covers the cranial vault. Extending from the superior nuchal lines and occipital protuberances posteriorly, to the supraorbital margins anteriorly, and laterally down to the zygomatic arches, it plays a vital role in protecting the neurocranium and regulating temperature.

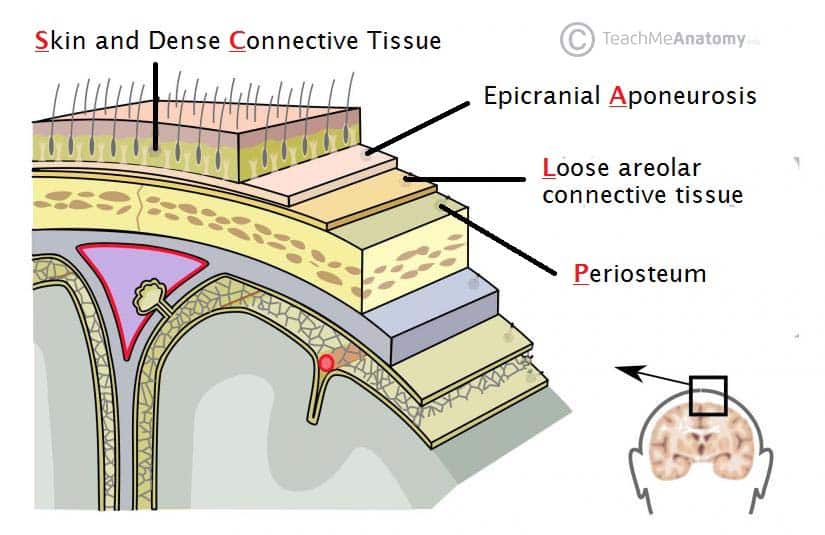

[IMAGE PLACEHOLDER: Cross-sectional diagram of the skull and scalp showing the 5 distinct S.C.A.L.P. layers, with emissary veins bridging the areolar tissue to the dural sinuses]

The Five Layers of the Scalp (Mnemonic: S.C.A.L.P.)

The scalp consists of five distinct layers. The first three layers are tightly bound together and move as a single functional unit.

S — Skin: Typically thick and hair-bearing. It contains an abundant supply of sebaceous (oil) glands and hair follicles that extend deeply into the connective tissue below. (High density of sebaceous glands makes the scalp prone to sebaceous cysts).
C — Connective Tissue (Dense): A dense, highly vascularized, and innervated fibro-fatty layer. Because the collagen fibers tightly tether the blood vessels, vessels here cannot retract and constrict when cut, leading to the characteristic profuse bleeding seen in superficial head wounds.
A — Aponeurosis (Galea Aponeurotica): A strong, immense, tendinous sheet connecting the frontal and occipital bellies of the occipitofrontalis muscle. It is immobile and prevents the scalp from stretching. Suturing this layer is critical in deep scalp lacerations to prevent the wound from gaping wide open.
L — Loose Areolar Tissue (The "Danger Area"): A sponge-like, easily separable layer that allows the upper three layers (the scalp proper) to glide smoothly over the skull. It is termed the "Danger Area" because it contains Emissary Veins—valveless veins that directly connect the superficial scalp veins to the deep intracranial dural venous sinuses.
P — Pericranium: The deepest layer. This is the dense periosteum covering the outer surface of the calvarium (skull bones). It is tightly adherent to the suture lines of the skull and contains the vascular networks vital for bone support and repair.

Clinical Significance of Scalp Layers

The "Danger Area" & Infection: Pus or blood accumulating in the loose areolar layer can spread widely across the entire dome of the skull. Worse, infections here can track directly down the valveless emissary veins into the brain, causing lethal Meningitis or Cavernous Sinus Thrombosis.
Scalp Avulsion: In horrific industrial or machinery accidents where hair is caught and ripped, the scalp peels off exactly at the plane of the loose areolar tissue. The first three layers (S-C-A) detach cleanly as a single unit away from the pericranium.
Profuse Bleeding: Because the dense connective tissue holds arteries open, even small scalp cuts bleed dramatically. Bleeding is best controlled by applying direct, firm pressure against the hard underlying skull bone.

II. Muscles of Facial Expression

Approximately 20 flat, thin skeletal muscles lie immediately beneath the skin of the face and scalp. These muscles are biologically unique compared to other skeletal muscles. They originate from facial bones or fibrous structures and insert directly into the dermis of the skin, allowing them to pull the skin to create expressions.

Embryological and Neurological Rule: All muscles of facial expression lack deep fascia (with the exception of the buccinator), are derived from the Second Pharyngeal Arch, and are universally innervated by the Facial Nerve (CN VII).

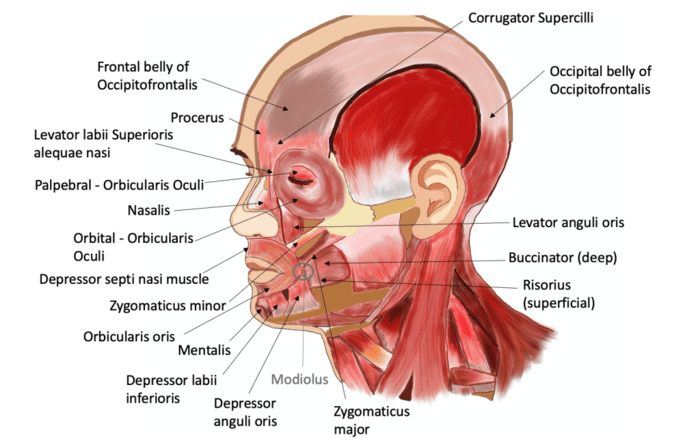

[IMAGE PLACEHOLDER: Detailed anterior and lateral views of the face illustrating the complex network of facial muscles interacting around the eyes, nose, and mouth]

1. Orbital Group (Muscles Around the Eye)

Orbicularis Oculi

The sphincter muscle of the eyelids.

Origin: Medial orbital margin, medial palpebral ligament, lacrimal bone.
Insertion: Skin around the orbital margin, tarsal plates.
Action: Palpebral part: Gently closes eyelids (blinking to spread tears). Orbital part: Forcefully, tightly closes eyelids (squinting against bright light/dust).

Corrugator Supercilii

The "frowning" muscle of the brow.

Origin: Medial side of the superciliary arch.
Insertion: Skin superior to the supraorbital area (mid-eyebrow).
Action: Pulls the eyebrows inferomedially (down and in). Creates the vertical forehead wrinkles associated with a "worried" or "angry" expression.

2. Nasal Group (Muscles of the Nose)

Involved in respiration and conveying anger or disgust.

Muscle	Origin / Insertion	Action & Expression
Nasalis (Transverse Part)	Origin: Maxilla, lateral to nose. Insertion: Aponeurosis across dorsum of nose.	Compresses the nasal aperture (closes nostrils).
Nasalis (Alar Part)	Origin: Maxilla over lateral incisor. Insertion: Alar cartilage.	Dilates the nostrils ("flaring" during anger or heavy breathing).
Procerus	Origin: Nasal bone/cartilage. Insertion: Skin over glabella (between eyebrows).	Depresses medial eyebrows, wrinkling the skin over the bridge of the nose. Expression of "Disgust" or "Disdain".
Depressor Septi Nasi	Origin: Maxilla above medial incisor. Insertion: Nasal septum.	Pulls the nasal septum inferiorly to widen the nasal opening. Assists alar nasalis in deep inspiration.

3. Oral Group (Muscles Around the Mouth)

The mouth is highly dynamic, surrounded by elevators, depressors, and a main sphincter.

Crucial Landmark: The Modiolus

The Modiolus is a dense, fibromuscular hub located just lateral to the angle of the mouth. It acts as the functional center of facial expression. Multiple muscles converge and anchor directly into this dense nodule, including the Zygomaticus major, Risorius, Buccinator, Levator anguli oris, and Depressor anguli oris.

Orbicularis Oris

Origin: Maxilla, mandible, mouth angle. Insertion: Mucous membrane of lips.
Action: Closes the oral fissure, compresses and protrudes the lips (The "Kissing" or whistling muscle).

Buccinator

Origin: Maxilla, mandible alveolar processes, pterygomandibular raphe. Insertion: Orbicularis oris, modiolus.
Action: Compresses cheek tightly against the molars to keep food on the teeth while chewing. (The "Trumpeter's" muscle).

Zygomaticus Major & Minor

Origin: Zygomatic bone. Insertion: Modiolus (Major) and upper lip (Minor).
Action: Major elevates the labial commissure (The "Smiling" muscle). Minor elevates and everts the upper lip (Sadness).

Risorius

Origin: Parotid fascia. Insertion: Modiolus.
Action: Draws the angle of the mouth straight laterally. Creates a fake, tense, or grimacing "Frown".

Levators (Superioris & Alaeque Nasi)

Origin: Maxilla regions. Insertion: Upper lip and alar cartilage.
Action: Elevates/everts upper lip and violently dilates the nostril (The famous "Elvis Snarl").

Depressors (Anguli Oris & Labii Inferioris)

Origin: Mandible. Insertion: Modiolus and lower lip.
Action: Pulls down the corners of the mouth (Sadness/Frown) or depresses the lower lip (Pouting).

Mentalis

Origin: Mandibular incisive fossa. Insertion: Skin of the chin.
Action: Raises and strongly protrudes the lower lip. Creates a wrinkled chin (Expression of Doubt or Contempt).

4. Cranial & Neck Group

Occipitofrontalis (Epicranius): Composed of two bellies joined by the epicranial aponeurosis.
- Frontal Belly: Originates from the galea, inserts into the skin of the eyebrows. Action: Raises eyebrows, heavily wrinkles the forehead (The "Surprised" look).
- Occipital Belly: Originates from the superior nuchal line, inserts into the galea. Action: Retracts the scalp, anchoring it so the frontal belly can work.
Platysma: A broad, paper-thin sheet of muscle. Originates from the subcutaneous tissue of the clavicle/thorax. Inserts into the mandible base, cheek, and modiolus. Action: Depresses the mandible against resistance and tightly tenses the skin of the neck (Prominent during intense fear, exertion, or when men shave their necks).

Clinical Correlations: Facial Muscles

Bell's Palsy (CN VII Lesion): A lower motor neuron lesion of the facial nerve results in total unilateral paralysis of the facial muscles. Symptoms include an inability to close the eye (lagophthalmos leading to severe corneal drying and ulceration), a drooping mouth, and drooling.
Treatment: Artificial tears, eye taping at night, and temporary tarsorrhaphy (suturing the eyelids partially closed).
Botulinum Toxin (Botox) Applications: Used cosmetically and therapeutically. Injecting it into the Corrugator supercilii paralyzes it, erasing the deep vertical "frown lines" (glabellar lines) between the eyes.
Platysma in Surgery: During major neck surgeries (like thyroidectomies), the platysma must be carefully incised and meticulously reapproximated (sutured back together) during closure. Failure to do so results in wide, ugly, stretched scarring.

III. Superficial Nerves (Sensory and Motor)

The head and neck rely heavily on two major cranial nerves for facial function, supported by a network of cervical spinal nerves for the posterior and lateral territories.

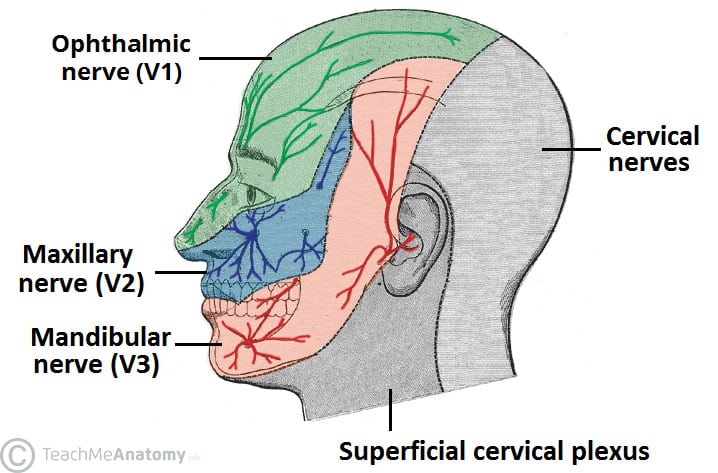

[IMAGE PLACEHOLDER: Lateral view of the head mapping the sensory dermatomes of V1, V2, and V3 (Trigeminal), alongside the cervical plexus territories (C2, C3) on the scalp and neck]

1. The Trigeminal Nerve (CN V) — The Great Sensory Nerve

The largest cranial nerve. It provides almost all the general somatic sensory innervation to the face and head, and the motor supply exclusively to the muscles of mastication (chewing). It originates from the pons, expanding into the massive Trigeminal (Gasserian) Ganglion located in Meckel's cave (a CSF-filled dural pouch over the petrous temporal bone). From the ganglion, it splits into three great divisions.

Division	Function & Skull Exit	Sensory Territory & Key Branches
V1: Ophthalmic	Purely Sensory. Exits via: Superior Orbital Fissure.	Territory: Upper 1/3 of face (Forehead, upper eyelid, cornea, dorsum of nose, frontal/ethmoid sinuses, superior sagittal sinus). Branches: Frontal nerve (Supraorbital & Supratrochlear), Lacrimal nerve (supplies gland/lateral lid), Nasociliary nerve (Long ciliary to cornea, ethmoidal, infratrochlear).
V2: Maxillary	Purely Sensory. Exits via: Foramen Rotundum.	Territory: Middle 1/3 of face (Lower eyelid, cheek, upper lip, upper teeth/gums, nasal cavity mucosa, palate). Branches: Zygomatic (zygomaticotemporal, zygomaticofacial), Infraorbital, Superior alveolar, Pterygopalatine branches.
V3: Mandibular	Mixed (Sensory + Motor). Exits via: Foramen Ovale.	Territory (Sensory): Lower 1/3 of face (Lower lip, chin, temporal region, anterior 2/3 of tongue for general touch). Branches: Auriculotemporal, Lingual, Inferior alveolar (Mental nerve), Buccal. Motor: Masseter, Temporalis, Pterygoids, Mylohyoid, Anterior digastric, Tensor tympani.

Clinical Note: Herpes Zoster Ophthalmicus (Shingles) frequently affects the V1 division. The virus travels down the nerve, causing a blistering rash, severe stabbing eye pain, corneal ulceration, and potential blindness. If the rash involves the tip of the nose (Hutchinson's sign), it indicates the nasociliary branch is infected, predicting severe intraocular complications.

2. The Facial Nerve (CN VII) — The Great Motor Nerve

CN VII is the primary motor nerve of the face. After leaving the brainstem, traversing the internal acoustic meatus and the facial canal, it exits the base of the skull via the stylomastoid foramen. It then immediately dives deeply into the substance of the parotid gland.

Within the parotid gland (without actually innervating it), CN VII divides into five terminal motor branches that fan out across the face. (Mnemonic: To Zanzibar By Motor Car).

Temporal branch: Innervates the frontalis, upper orbicularis oculi, and corrugator supercilii.
Zygomatic branch: Innervates the lower orbicularis oculi (responsible for forceful eye closure).
Buccal branch: Innervates the orbicularis oris, buccinator, zygomaticus muscles, and nasalis.
Marginal Mandibular branch: Sweeps along the jawline to innervate the depressor labii inferioris, depressor anguli oris, and mentalis.
Cervical branch: Dives down into the neck to supply the platysma.

Special Functions of CN VII (Beyond Motor)

Taste: The Chorda Tympani branch rides along the lingual nerve to carry special sensory taste from the anterior 2/3 of the tongue.
Parasympathetic: Provides secretomotor fibers to the lacrimal (tear) gland, submandibular, and sublingual salivary glands.
Stapedius Innervation: Supplies the tiny stapedius muscle in the ear, which dampens loud noises. Paralysis of this nerve causes Hyperacusis (normal sounds perceived as painfully loud).

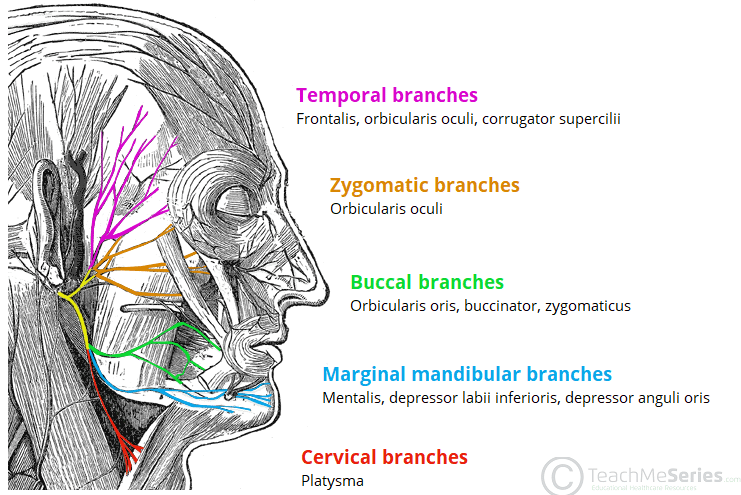

[IMAGE PLACEHOLDER: Diagram of the Facial Nerve exiting the stylomastoid foramen, branching out through the translucent parotid gland into its 5 terminal branches on the face]

3. The Cervical Plexus (Superficial Branches)

Formed by the anterior rami of the C1-C4 spinal nerves. Its sensory (cutaneous) branches emerge from behind the Sternocleidomastoid (SCM) muscle at a specific anatomical hub known as Erb's Point (the exact midpoint of the posterior border of the SCM). They supply the skin of the neck, upper thorax, scalp, and ear.

Lesser Occipital (C2)

Curves around the accessory nerve (CN XI) and ascends directly along the posterior border of the SCM.
Supplies: Upper medial auricle, skin behind the ear, and posterosuperior scalp.

Great Auricular (C2-C3)

The largest ascending branch. Pierces the investing fascia at Erb's point and ascends vertically over the SCM, deep to the platysma.
Supplies: Skin over the parotid gland, angle of the jaw, and both sides of the external ear.

Transverse Cervical (C2-C3)

Curves horizontally around the posterior SCM, running medially deep to the external jugular vein, fanning out across the throat.
Supplies: Anterior and anterolateral neck skin down to the upper sternum.

Supraclavicular (C3-C4)

Emerges and instantly divides into three descending branches (medial, intermediate, lateral) before piercing the fascia.
Supplies: Skin over the manubrium, clavicles, and lateral shoulder (deltoid region).

Clinical Applications: A Cervical Plexus Block is achieved by injecting local anesthetic directly at Erb's Point, effectively numbing the entire neck and lower ear. This is heavily utilized for conscious surgeries like thyroidectomies and carotid endarterectomies. Also, during facelift or parotid surgeries, the Great Auricular Nerve is extremely vulnerable to being severed, resulting in permanent numbness of the earlobe.

IV. Superficial Vascular Supply

1. Arterial Supply — The External Carotid Artery (ECA)

While the internal carotid shoots straight to the brain, the External Carotid Artery provides the vast majority of the blood supply to the exterior neck and face. It branches off the common carotid precisely at the level of C4 (the upper border of the thyroid cartilage).

Mnemonic for ECA Branches (Anterior to Posterior): Some Angry Face Lady Pee'd On The Maxillary.

S — Superior Thyroid: The very first anterior branch. Dives down to supply the thyroid gland, larynx, and infrahyoid muscles.
A — Ascending Pharyngeal: A small medial branch near the origin. Supplies the pharynx, palate, and middle ear.
L — Lingual: Anterior branch passing near the hyoid bone to profusely supply the tongue, floor of the mouth, and sublingual gland.
F — Facial: A massive anterior branch. It emerges from the submandibular triangle, hooks dramatically over the inferior border of the mandible (anterior to the masseter), and ascends along the nasolabial fold towards the medial corner of the eye.
Key Feature: Its course is highly tortuous (wavy/coiled) to stretch and accommodate massive jaw and cheek movements during chewing without tearing.
O — Occipital: A large posterior branch supplying the posterior scalp and SCM.
P — Posterior Auricular: A small posterior branch near the mastoid process supplying the ear and scalp.
T — (Superficial) Temporal: One of the two terminal branches. It originates deep within the parotid gland, ascends just anterior to the ear, and crosses the temporal fossa to supply the lateral scalp and forehead. It gives off the Transverse Facial artery to supply the masseter.
M — Maxillary: The final, deepest terminal branch. Supplies the deep structures of the face, mandible, teeth, and meninges.

Clinical Pulse Points

Facial Artery Pulse: Easily palpated by pressing against the inferior border of the mandible, right in front of the firm masseter muscle attachment.
Superficial Temporal Pulse: Palpated immediately anterior to the tragus of the ear, pressing it against the hard zygomatic arch. Crucial for diagnosing Giant Cell (Temporal) Arteritis.

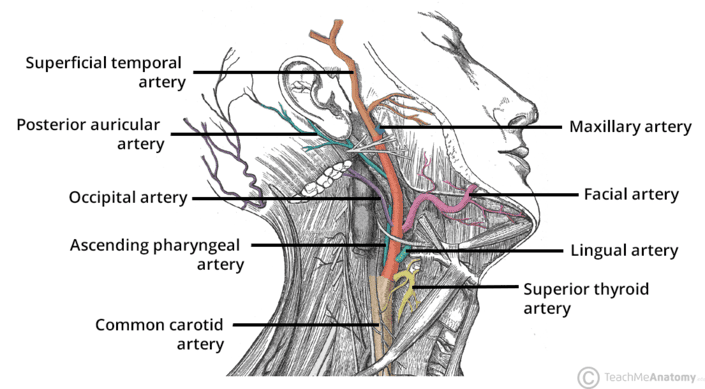

[IMAGE PLACEHOLDER: Lateral vascular map of the head and neck, showing the External Carotid Artery branching into the tortuous Facial Artery and ascending Superficial Temporal Artery, alongside the major venous drainage routes]

2. Venous Drainage and The Danger Triangle

Venous drainage heavily mirrors the arteries but relies on superficial and deep networks.

Facial Vein: The principal superficial vein. It begins at the medial canthus of the eye (as the angular vein), descends alongside the facial artery, and empties directly into the Internal Jugular Vein.
Critical anatomical feature: The facial vein possesses NO VALVES. Blood can flow bi-directionally based on gravity and pressure.
Retromandibular Vein: Formed inside the parotid gland by the union of the superficial temporal vein and the maxillary vein. It descends and splits; the anterior branch joins the facial vein, while the posterior branch joins the posterior auricular vein to form the External Jugular Vein (EJV).
Major Deep Veins: Internal Jugular Vein (IJV): A continuation of the sigmoid sinus from the brain, it descends deep in the neck within the carotid sheath to join the subclavian vein. External Jugular Vein (EJV): Drains the superficial scalp/face, pierces the deep fascia above the clavicle, and empties into the subclavian vein.

The Danger Triangle of the Face

An inverted triangle spanning from the corners of the mouth up to the bridge of the nose. It is highly clinically significant. Because the facial vein has no valves, an infection inside this triangle (like a popped pimple, an infected nasal piercing, or severe dental abscess) can allow bacteria-laden blood to flow backwards, deep into the skull through the superior ophthalmic vein. This empties directly into the cavernous sinus at the base of the brain, causing lethal Cavernous Sinus Thrombosis.

V. Surface Anatomy & Neck Triangles

The neck is a complex highway of vital structures wrapped in fascial compartments. To navigate it surgically and clinically, anatomists use the massive Sternocleidomastoid (SCM) muscle as a diagonal divider to split each side of the neck into an Anterior and Posterior Triangle.

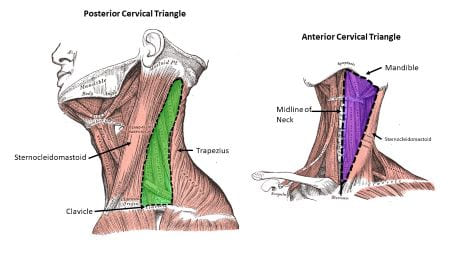

[IMAGE PLACEHOLDER: Anterior view of the neck illustrating the Sternocleidomastoid muscle dividing the neck into the Anterior and Posterior Triangles, mapped with their specific subdivisions]

General Roof (Both Triangles): Skin, superficial fascia containing the platysma muscle, external jugular vein, and cutaneous nerves, capped by the tough investing layer of the deep cervical fascia.

1. The Anterior Triangle

Main Borders: Superiorly by the inferior border of the mandible; Medially by the imaginary midline of the neck; Laterally by the anterior border of the SCM.

It is divided into 4 specific subdivisions by the digastric and omohyoid muscles:

Subdivision	Specific Borders & Floor	Key Contents & Clinical Use
Submental Triangle (Unpaired, under chin)	Borders: Hyoid bone (inferior), neck midline (medial), anterior belly of digastric (lateral). Floor: Mylohyoid muscle.	Submental lymph nodes (often swell during dental infections), anterior jugular vein tributaries.
Submandibular (Digastric) Triangle	Borders: Mandible (superior), anterior and posterior bellies of the digastric. Floor: Mylohyoid and hyoglossus.	Submandibular salivary gland, facial artery and vein, hypoglossal nerve (CN XII), mylohyoid nerve.
Carotid Triangle	Borders: Superior belly of omohyoid (anterior), posterior digastric + stylohyoid (superior), anterior border of SCM (posterior).	Contents: Common carotid artery bifurcation, internal/external carotids, Internal Jugular Vein, Vagus nerve (CN X) within the carotid sheath. Clinical: Access point for Carotid Endarterectomy. Warning: Contains the highly sensitive Carotid Sinus (baroreceptor). Pressing heavily here triggers severe bradycardia and hypotension (syncope). Never palpate both simultaneously.
Muscular (Omotracheal) Triangle	Borders: Hyoid bone (superior), midline (medial), superior omohyoid + anterior SCM (lateral).	Contents: The infrahyoid "strap" muscles, Thyroid & Parathyroid glands, Larynx, Trachea, Esophagus. Clinical: The primary surgical approach zone for a Thyroidectomy or surgical Tracheostomy.

2. The Posterior Triangle

Main Borders: Anteriorly by the posterior border of the SCM; Posteriorly by the anterior border of the trapezius; Inferiorly by the middle 1/3 of the clavicle.

It is divided into 2 subdivisions by the inferior belly of the omohyoid muscle:

Subdivision	Specific Borders & Floor	Key Contents & Clinical Use
Occipital Triangle (The larger superior part)	Borders: Posterior SCM, anterior trapezius, superior margin of the inferior omohyoid belly. Floor: Splenius capitis, levator scapulae, scalenes.	Contents: Accessory Nerve (CN XI) heavily exposed as it crosses superficially. Cervical plexus branches (Erb's point), upper trunks of the brachial plexus.
Supraclavicular (Omoclavicular) Triangle	Borders: Inferior omohyoid belly, posterior SCM, clavicle. Floor: Scalenus medius, first rib.	Contents: Third part of the subclavian artery, Brachial plexus trunks (upper, middle, lower), External Jugular Vein base. Clinical: Primary zone for Central Venous Line placement into the subclavian vein, or regional anesthesia via a Brachial Plexus Block (Carries a high risk of puncturing the lung apex, causing a pneumothorax). Supraclavicular lymph node biopsies (Virchow's node) for gastric/lung cancer staging.

Key Surface Landmarks for Assessment

Carotid Pulse: Palpated specifically at the level of C4, deeply between the anterior border of the SCM and the thyroid cartilage. Used in adult CPR.
Jugular Venous Pressure (JVP): Assessed visually looking at the Internal Jugular Vein between the two lower heads (sternal and clavicular) of the SCM muscle. Indicates Right Heart function/failure.
Cricothyroid Membrane: Palpated exactly in the anterior midline between the firm, superior thyroid cartilage ("Adam's Apple") and the inferior, ring-like cricoid cartilage.
Clinical Use: The exact life-saving landmark for performing an emergency, needle or surgical Cricothyroidotomy to secure an airway in seconds.

VI. References and Evidence-Based Reading

Moore, K. L., Dalley, A. F., & Agur, A. M. R. (2017). Clinically Oriented Anatomy (8th ed.). Lippincott Williams & Wilkins. (Definitive resource for neck triangles and facial fascia).
Standring, S. (2020). Gray's Anatomy: The Anatomical Basis of Clinical Practice (42nd ed.). Elsevier. (Exhaustive detail on the cranial nerves, parotid gland relations, and vascular anastomoses).
Netter, F. H. (2018). Atlas of Human Anatomy (7th ed.). Elsevier. (Visual atlas highly recommended for tracing the terminal branches of the facial nerve and ECA).
Kenhub. Medical Anatomy Series: Superficial Structures of the Head and Neck. (Source material for spatial relations and clinical correlates).
